COBALT LITHIUM MANGANESE NICKEL OXIDE (NCM) CAS 346417-97-8/182442-95-1
Identification
Properties
Safety Data
Specifications & Other Information
Links
Identification
CAS Number
346417-97-8/182442-95-1
Name
COBALT LITHIUM MANGANESE NICKEL OXIDE (NCM)
Properties
Appearance
Black solid powder
Different specification appearance of COBALT LITHIUM MANGANESE NICKEL OXIDE (NCM) CAS 346417-97-8 182442-95-1Safety Data
Symbol
![exclamation-mark-jpg](https://watson-aetzhrkr6.netdna-ssl.com/wp-content/uploads/2014/07/health-hazard-jpg.jpg" "exclamation-mark-jpg"){kind=small}
GHS07, GHS08Signal Word
Warning
Hazard Statements
Precautionary Statements
RIDADR
NONH for all modes of transport
WGK Germany
3
Specifications and Other Information of Our COBALT LITHIUM MANGANESE NICKEL OXIDE (NCM) CAS 346417-97-8/182442-95-1
Standard
Enterprise standard
The First C-D effciency
≥85%
Discharge Capacity/(mAh/g, vs.Li)
160～170(2.75～4.3V, vs.Li)
Specific Optical Rotation
+31.0-+35.0°
Compacted Density/(g/cm3)
3.6～3.9g/cm3
Cycle Life
＞85%
Detailed Specification
| Item | Unit | SPEC | |||
| Product Property | Physical properties | PSD | D50 | µm | 11.50±2.00 |
| D10 | ≥2.0 | ||||
| D90 | ≤25 | ||||
| Dmin | ≥2.0 | ||||
| Dmax | ≤35 | ||||
| BET | m2/g | 0.2-0.5 | |||
| Tap Density | g/cm3 | ≥2.2 | |||
| Chemical properties | Li2CO3 | ppm | ≤2000 | ||
| LiOH | ≤2000 | ||||
| Impurities | Fe | ppm | ≤80 | ||
| Cu | ≤50 | ||||
| Zn | ≤50 | ||||
| Ca | ≤50 | ||||
| Na | ≤200 | ||||
| Mg | ≤200 | ||||
| Magnetic Impurities | ppb | ≤100 | |||
| pH | – | 11.20±0.5 | |||
| Moisture | ppm | ≤500 | |||
Storage
Under the room temperature and away from light
Application
High capacity and long cycle life lithium nickel-manganese-cobalt oxide (NMC), mainly used in Power bank/ NB/ PT Batteries.
General View of Documents

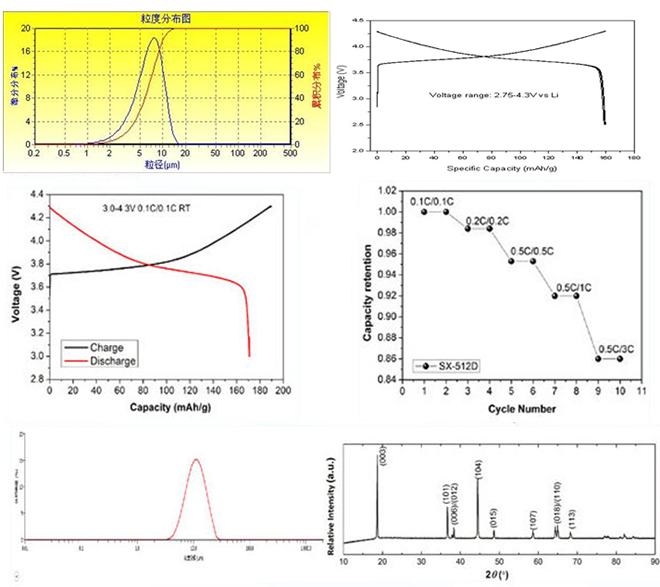

Related-spectrum of COBALT LITHIUM MANGANESE NICKEL OXIDE (NCM) CAS 346417-97-8 182442-95-1Links
