About Silver Nanowires CAS No: 7440-22-4
Silver nanowire (Agnw) is poised to become an essential component of today’s most advanced technologies. Why? To begin with, silver nanowires do their job better than competing materials boasting high transmission rates and low resistance. This combination enables 10-finger touch, brighter displays, and longer battery life—all critical elements in improving the user experience. Second, the cost of silver nanowire is low in comparison to other similar materials. Silver is a plentiful material, manufacturing is inexpensive, and mass production is far from being an issue. Lastly, silver nanowires are infinitely flexible making them very versatile. Thin and curved is in wearables, kiosks, solar panels, gaming machines, point-of-sale devices, automobile displays, and GPS systems, all of these technologies can benefit from being thinner and more flexible with the help of silver nanowire.
Potential Applications of Silver Nanowires
- Optical Applications: solar, medical imaging, surface enhanced spectroscopy, optical limiters
- Conductive Applications: high-intensity LEDs‚ touchscreens‚ conductive adhesives‚ sensors
- Antimicrobial Applications: air & water purification‚ bandages‚ films‚ food preservation‚ clothing
- Chemical & Thermal: catalysts‚ pastes‚ conductive adhesives‚ polymers, chemical vapor sensors
Manufacturing Process
- Polyol method – They are produced using an aqueous solvent in an autoclave at 120° C for 8h.
- Rapid synthesis – They are prepared by mixing polyvinyl pyrrolidone and copper chloride in disposable glass vials. In this method, ethylene glycol is used as a precursor to the reducing agent.
- Template method – This method employs supramolecular nanotubes of amphiphilic cyanine dye in aqueous solution as chemically active templates for the formation of silver nanowires.
- Electroless deposition –Silver nanowires are formed by the electroless deposition of silver into the polycarbonate membranes through metal amplification process.
Polyberg Silver Nanowires
| Products | Average Diameter/nm | Length/μm | Silver Purity (%) | Concentration (mg/ml) |
| Polyberg-Agnw30 | 30 | 100-200 | ~99.5% | 20 |
| Polyberg-Agnw40 | 40 | 20-30 | ~99.5% | 20 |
| Polyberg-Agnw50 | 50 | 100-200 | ~99.5% | 20 |
| Polyberg-Agnw60 | 60 | 20-30 | ~99.5% | 20 |
| Polyberg-Agnw70 | 70 | 100-200 | ~99.5% | 20 |
| Polyberg-Agnw90 | 90 | 20-30 | ~99.5% | 20 |
| Polyberg-Agnw100 | 100 | 100-200 | ~99.5% | 20 |
SEM (Scanning Electron Microscope) Image

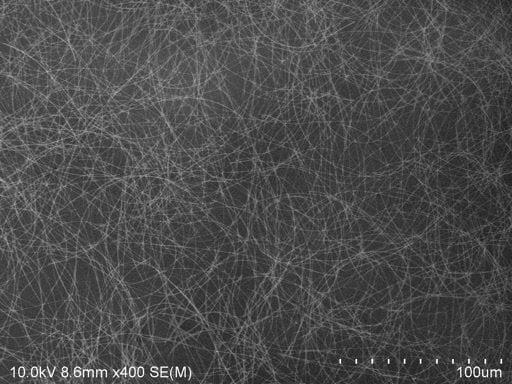

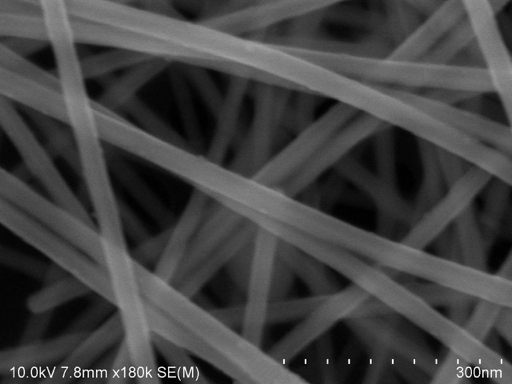

Polyberg Agnw30 SEM

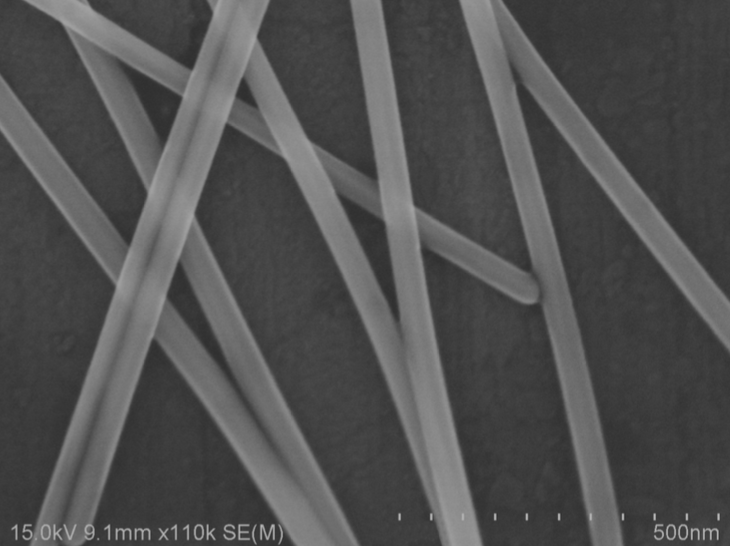

Polyberg Agnw50 SEM

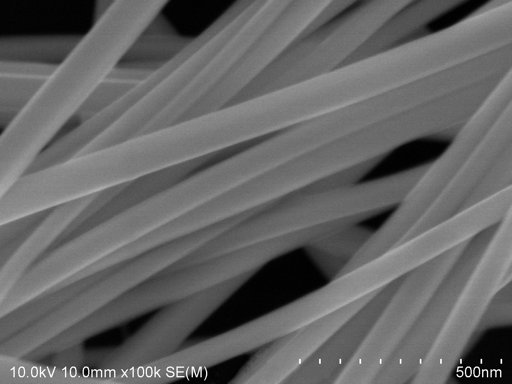

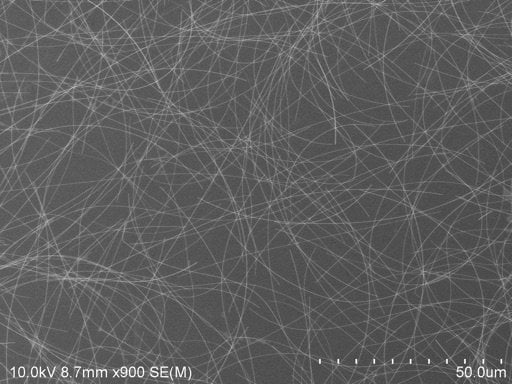

Polyberg Agnw70 SEM

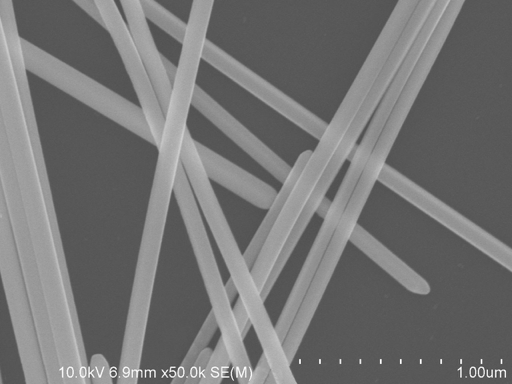

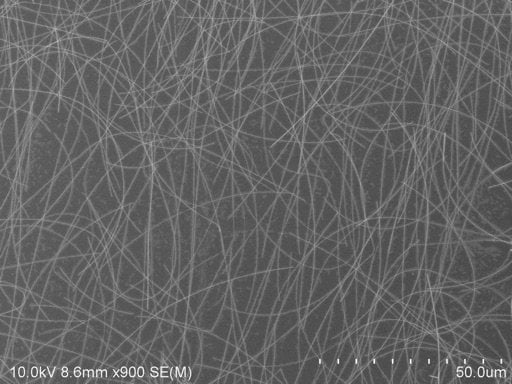

Polyberg Agnw100 SEM

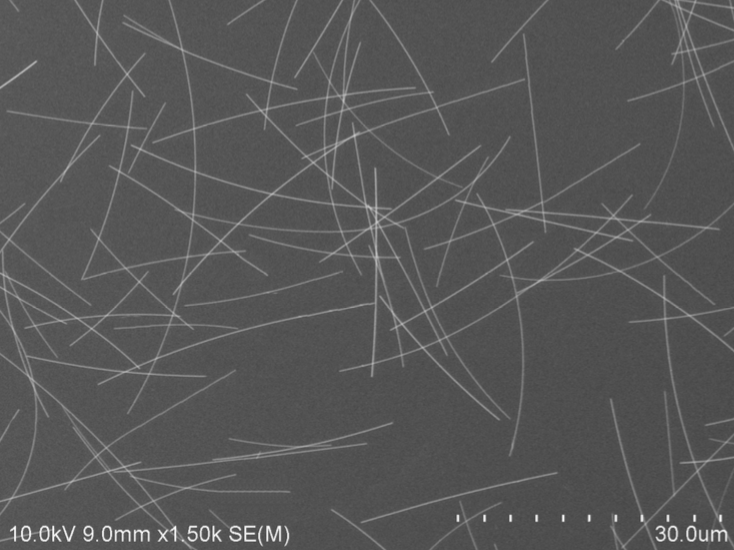

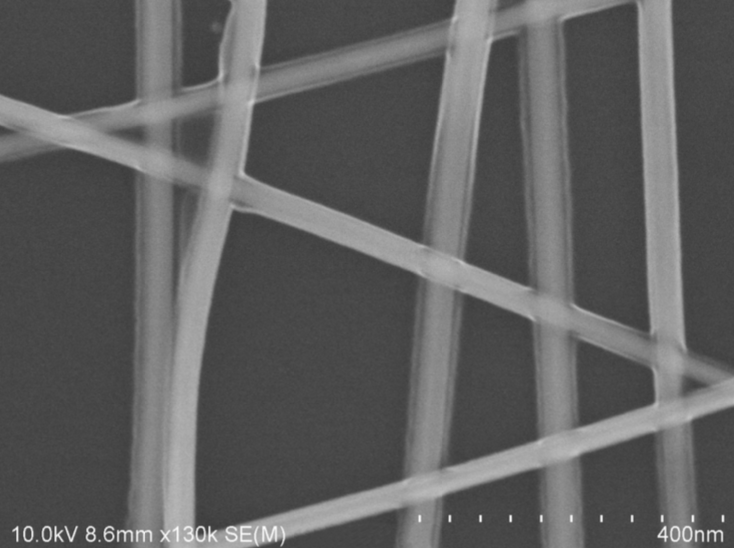

Polyberg Agnw40 SEM

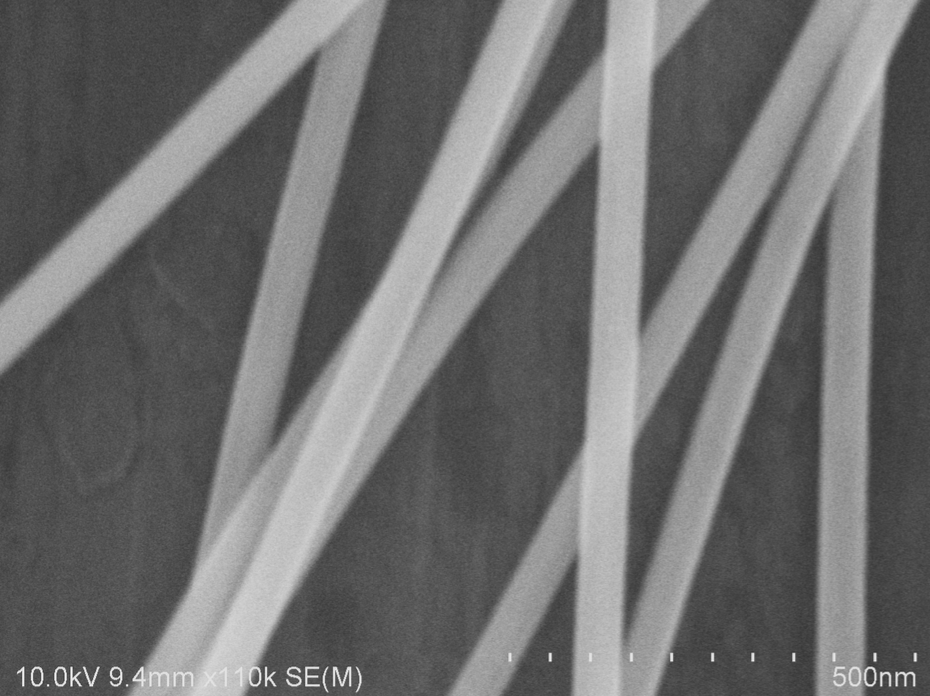

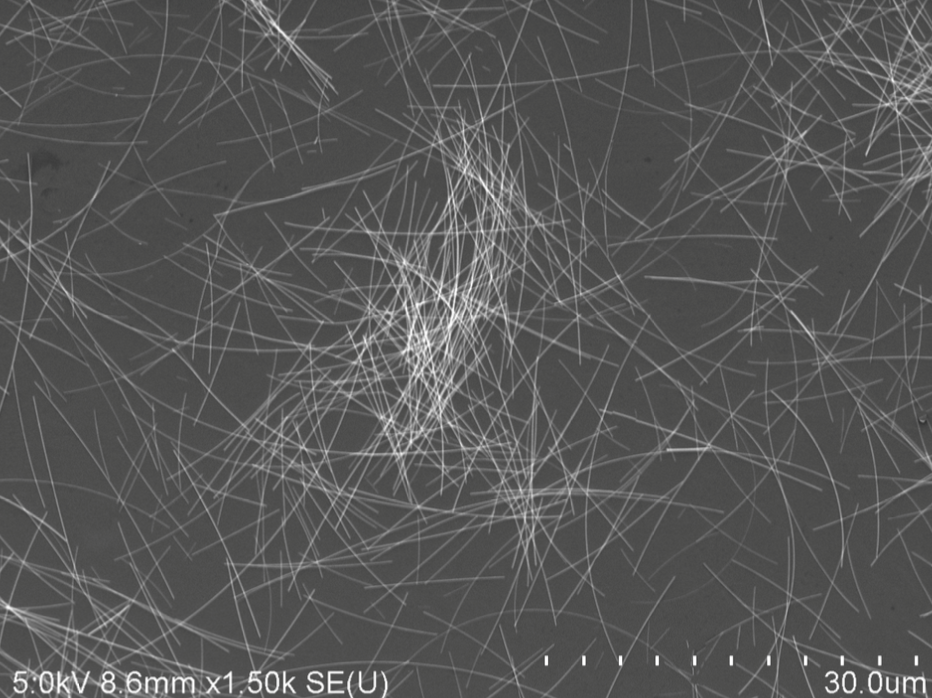

Polyberg Agnw60 SEM

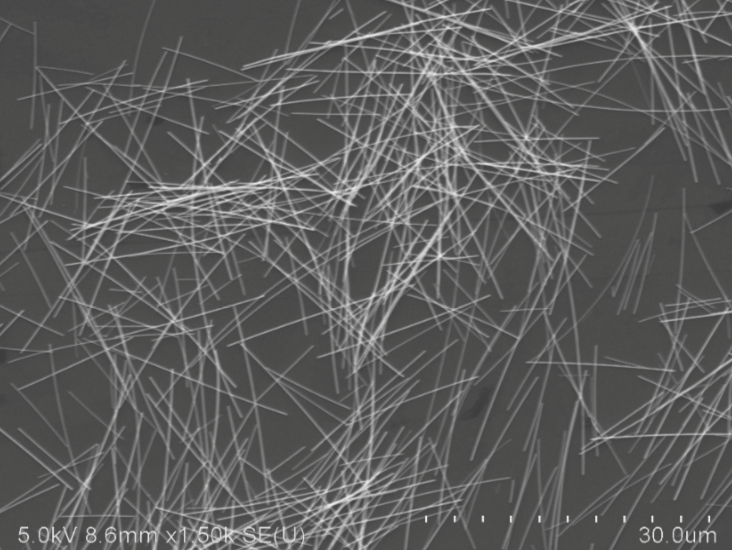

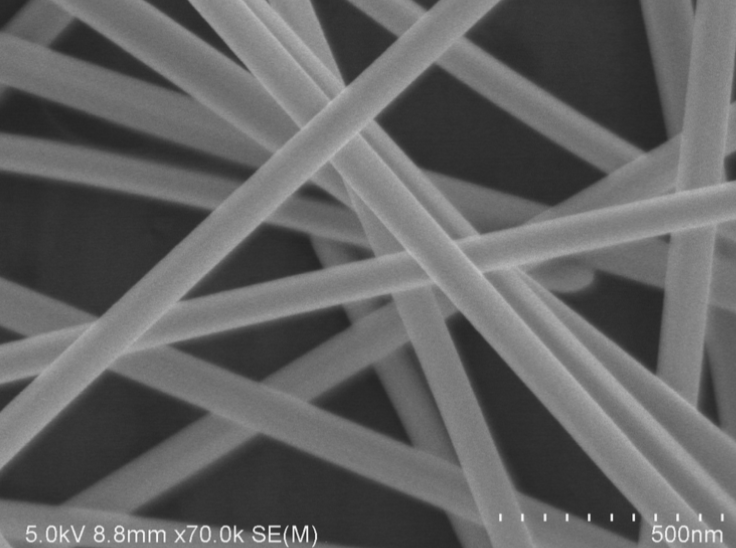

Polyberg Agnw90 SEM
